CG1-AI security wireless camera - 4MP

Sensor: 1/3 CMOS

Visual Angle: 123.6° diagonal, 105° horizontal, 58.3° vertical

Maximum Image Resolution: 2560×1440-4MP

Light Source for Night Vision: White light for infrared LED switchable

Wireless Network: 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n)

Alam Notification: Alarm push by mobile app, while light flashing, and alarm warming

Video Storage: Cloud storage, local Micro SD card, and mobile phone memory

SD Card: 1 Micro SD card (up to 128 GB supported)

Battery: 5200 mAh or 6700 mAh; 6 months (provided that 20 10-second videos are recorded per day)

Dustproof and Waterproof: IP65

Dimension: 84 mm x 62 mm x 96 mm (bracket excluded)

Certificate: CE, FCC, MSDS, RoHS, UL62368, UN38.3, WEEE

Intelligent Features: Uni-Smart enabled


CG5-AI security wireless bullet camera - 4MP

Sensor: 1/3 CMOS

Visual Angle: 123.6° diagonal, 105° horizontal, 58.3° vertical

Maximum Image Resolution: 2560×1440-4MP

Light Source for Night Vision: White light or infrared LED switchable

Wireless Network: 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n)

Alarm Notification: Alarm push by mobile app, alarm waning, and white light flashing

Video Storage: Cloud storage, 1 Micro SD card (up to 128 GB supported), and mobile phone memory

Battery: 9000 mAh

Dustproof and Waterproof: IP65

Dimension: 135 mm × 75.2 mm × 82.4 mm (bracket excluded)

Intelligent Features: Uni-Smart enabled


CG6-AI security wireless camera- 2MP

Sensor: 1/2.9" CMOS

Visual Angle: 110 diagonal, 95° horizontal, 55° vertical°

Max Image Resolution: 1920×1080-2MP

Light Source for Night Vision: Infrared LED, optional white light

Wireless Network: 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n)

Alarm Notification: Alarm push by mobile app, alarm warning, and white light flashing (optional)

Video Storage: Cloud storage, 1 Micro SD card (up to 128 GB supported), and mobile phone memory

Battery: 5200 mAh or 6700 mAh

Dustproof and Waterproof: IP65

Dimension: 67 mm × 58 mm × 89 mm (bracket excluded)

Packing size: 80 mm × 80 mm × 192.5 mm

Certificate: CE, FCC, MSDS, RoHS, UL62368, UN38.3, WEEE

Intelligent Features: Uni-Smart enabled


CG7-AI security wireless bullet camera - 2MP

Sensor: 1/2.9 CMOS

Visual Angle: 110° diagonal, 95° horizontal, 55° vertical

Maximum Image Resolution: 1920×1080-2MP

Light Source for Night Vision: White light or infrared LED switchable

Wireless Network: 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n)

Alarm Notification: Alarm push by mobile app, alarm waning, and white light flashing

Video Storage: Cloud storage, local Micro SD card, and mobile phone memory

SD Card: 1 Micro SD card (up to 128 GB supported)

Battery: 9000 mAh; 7 months (provided that 20 10-second videos are recorded per day)

Dustproof and Waterproof: IP65

Dimension: 81.3 mm x 119.2 mm x 80.6 mm

Certificate: CE, FCC, MSDS, RoHS, UL62368, UN38.3, WEEE

Intelligent Features: Uni-Smart enabled


CQ1-AI security wireless PTZ camera - 3MP

Sensor: 1/2.8 CMOS

Visual Angle: 140° diagonal, 118° horizontal, 61.5° vertical

Maximum Image Resolution: 2304×1296-3MP

Light Source for Night Vision: White light or infrared LED switchable

Wireless Network: 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n)

Alarm Notification: Alarm push by mobile app, white led flashing, and alarm warning

Rotation angle: 355° pan, 90° tilt

Video Storage: Micro SD card (up to 128 GB), local storage, and cloud storage

Battery: 9000 mAh; 8 months (provided that 20 10-second videos are recorded per day)

Solar Panel (optional): 3 W

Dustproof and Waterproof: IP65

Dimension: 120.2 mm x 101.1 mm x 158.3 mm (bracket excluded)

Certificate: CE, FCC, MSDS, RoHS, UN38.3, WEEE

Intelligent Features: Uni-Smart enabled


DX1-AI security wireless PTZ camera - 3MP

Sensor: 1/2.8 CMOS

Visual Angle: 140° diagonal, 118° horizontal, 61.5° vertical

Maximum Image Resolution: 2304×1296-3MP

Light Source for Night Vision: White light or infrared LED switchable

Wireless Network: 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n)

Alarm Notification: Alarm push by mobile app, white led flashing, and alarm warning

Rotation angle: 355° pan, 90° tilt

Video Storage: Micro SD card (up to 128 GB), local storage, and cloud storage

Battery: 9000 mAh; 8 months (provided that 20 10-second videos are recorded per day)

Solar Panel (optional): 3 W

Dustproof and Waterproof: IP65

Dimension: 100 mm x 148 mm x 216 mm (bracket excluded)

Certificate: CE, FCC, MSDS, RoHS, UN38.3, WEEE

Intelligent Features: Uni-Smart enabled


DB1-AI video doorbell - 3MP

Real time video and audio
Austomatic recording
Video history
2K HD video with 2048X1536
Compatible with Android; remote real-time monitoring supported with the IOS intelligent terminal
4:3 aspect ratio with 156° field of view
Lighting for infrared night vision (with a night vision distance of 7m); 24h around-the-clock monitoring; IR-CUT switching; free of color cast in the daytime; clearer night vision
Support both wIre-free installation and wired installation
One doorbell can connect to multiple chimes, so you won't miss the ring in any room
Intelligent storage algorithm, small space can accommodate more content, support Micro SD card, cloud storage
QR code intelligent connection and network allocation supported
Supporting human contour detection, activity zone, intelligent push and pet snapshot
Resistant to rain, snow, sun, dust. IP65 weather proof


DB2-AI video doorbell - 2MP

Real time video and audio
Austomatic recording
Video history
HD video with 1920X1080
Compatible with Android; remote real-time monitoring supported with the IOS intelligent terminal
16:9 aspect ratio with 148° field of view
Lighting for infrared night vision (with a night vision distance of 7m); 24h around-the-clock monitoring; IR-CUT switching; free of color cast in the daytime; clearer night vision
Support both wIre-free installation and wired installation
One doorbell can connect to multiple chimes, so you won't miss the ring in any room
Intelligent storage algorithm, small space can accommodate more content, support Micro SD card, cloud storage
QR code intelligent connection and network allocation supported
Supporting human contour detection, activity zone, intelligent push and pet snapshot
Resistant to rain, snow, sun, dust. IP65 weather proof


V1-AI security wireless camera - 4MP

Sensor: 1/3 CMOS

Visual Angle: 123.6° diagonal, 105° horizontal, 58.3° vertical

Maximum Image Resolution: 2560×1440-4MP

Light Source for Night Vision: White light or LED switchable

Wireless Network: 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n)

Alarm Notification: Alarm push by mobile app, alarm warning, and white light flashing

Video Storage: Cloud storage, local Micro SD card, and mobile phone memory

SD Card: 1 Micro SD card (up to 128 GB supported)

Battery: 9600 mAh; 8 months (provided that 20 10-second videos are recorded per day)

Dustproof and Waterproof: IP65

Dimension: 97.4 mm x 63.3 mm x 72.1 mm (bracket excluded)

Certificate: CE, FCC, RoHS, UN38.3

Intelligent Features: Uni-Smart enabled


V2-AI security wireless bullet camera -2MP

Sensor: 1/2.9 CMOS

Visual Angle: 110° diagonal, 95° horizontal, 55° vertical

Maximum Image Resolution: 1920×1080-2MP

Light Source for Night Vision: White light or infrared LED switchable

Wireless Network: 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n)

Alarm Notification: Alarm push by mobile app, alarm warning, and white light flashing

Video Storage: Cloud storage, local Micro SD card, and mobile phone memory

SD Card: 1 Micro SD card (up to 128 GB supported)

Battery: 9000 mAh; 8 months (provided that 20 10-second videos are recorded per day)

Dustproof and Waterproof: IP65

Certificate: CE, FCC, MSDS, RoHS, UL62368, UN38.3, WEEE

Intelligent Features: Uni-Smart enabled

Dimension: 117 mm x 74 mm x 75 mm (bracket excluded)

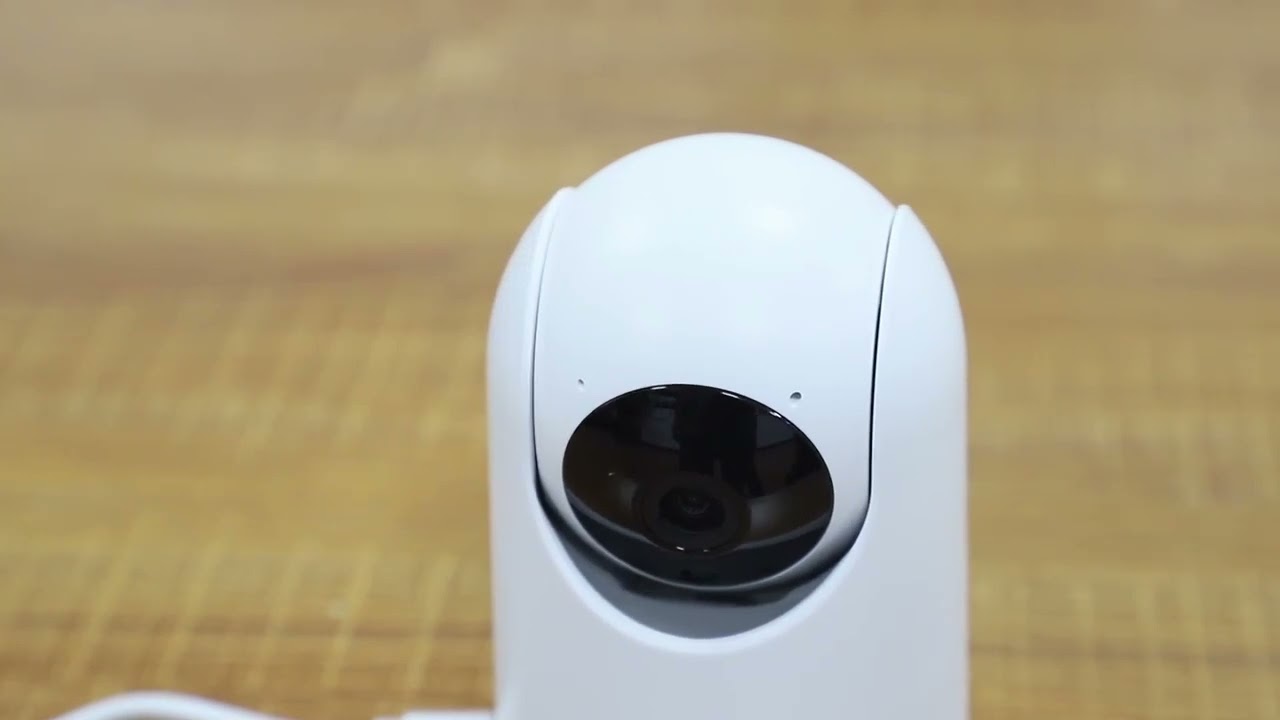

X07-AI PTZ indoor camera - 2MP

Sensor: 1/3 CMOS

Visual Angle: 100° diagonal, 85° horizontal, 48° vertical

Maximum Image Resolution: 1920×1080-2MP

Light Source for Night Vision: Infrared LED

Wireless Network: 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n)

Alarm Notification: Alarm push by mobile app

PT: 355° pan, 110° tilt

Video Storage: Micro SD card (up to 128 GB), local storage, and cloud storage

Dimension: 75 mm x 75 mm x 110mm

Certificate: CE, FCC, RoHS, WEEE

Intelligent Features: Uni-Smart enabled


X08-AI PTZ indoor camera - 2MP

Sensor: 1/3 CMOS

Visual Angle: 100° diagonal, 85° horizontal, 48° vertical

Maximum Image Resolution: 1920×1080-2MP

Light Source for Night Vision: Infrared LED

Wireless Network: 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n)

Alarm Notification: Alarm push by mobile app

PT: 355° pan, 110° tilt

Video Storage: Micro SD card (up to 128 GB), local storage, and cloud storage

Dimension: 74 mm x 74 mm x 117mm

Certificate: CE, FCC, RoHS, WEEE

Intelligent Features: Uni-Smart enabled


X09-AI PTZ indoor camera - 2MP

Sensor: 1/3 CMOS

Visual Angle: 100° diagonal, 85° horizontal, 48° vertical

Maximum Image Resolution: 1920×1080-2MP

Light Source for Night Vision: Infrared LED

Wireless Network: 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n)

Alarm Notification: Alarm push by mobile app

PT: 355° pan, 110° tilt

Video Storage: Micro SD card (up to 128 GB), local storage, and cloud storage

Dimension: 72 mm x 72 mm x 115.5 mm

Certificate: CE, FCC, RoHS, WEEE

Intelligent Features: Uni-Smart enabled


Solar panel

Maximum power(Wp): 5W or 3W

Open circuit voltage(V): 7.2V(±5%)

Maximum power voltage(V): 6V(±3%)

Maximum power current(A): 500mA(±3%)

Short circuit current(A): 520mA(±3%)

Cell Efficiency(%): ≥19.5%

Number of cells(pcs): 12

Maximum system voltage(V): 600V

Temperature Range: -40°C~+85°C

Standard Test Conditions: Tungsten halogen lamp illumination 38000lux
